Click here for a pdf showing how to measure your kitchen for a kitchen design
Click on image for large picture. Click on large image to return to this page

Step 1: Please provide us your kitchen layout information:
Room Layout Measure your kitchen, and tell us where the doors and windows are.

Appliances Specifications
You will need to provide appliances measurements and specifications.

Special Requirements and/ or Features
Provide us with any special requiremensts, and/or special features, so we can address it properly during design process.

Contact Information
Provide us with your contact information (name, email address and preferably phone number), so we may contact you to discuss your project and work with you on it.

port alberni parksville nanaimo campbell river courtenay tofino ucluelet

How to Measure Your Kitchen

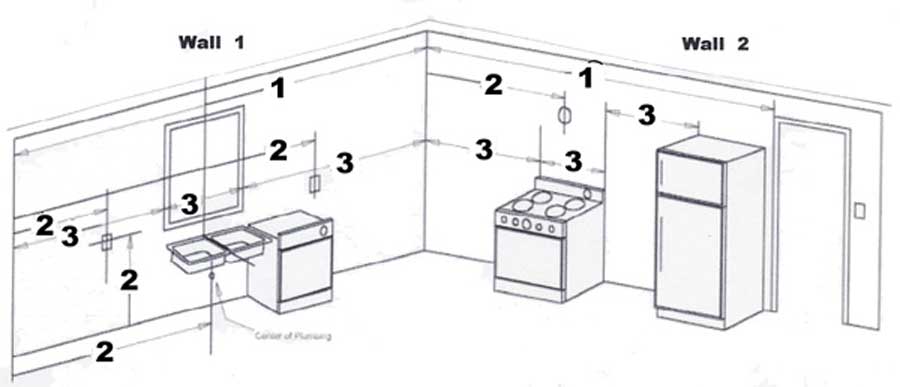

Make a sketch of your kitchen. Always start from the left side of your kitchen on the first wall you plan on adding cabinets and work from left to right. For example, using the illustration above, begin on "Wall 1".

Step 1
Measure the overall length of each wall and record it on your layout.
Measure the ceiling height from floor to ceiling.

Step 2
Starting from the corner on your left - measure to the center of outlets, plumbing, and vents.

Step 3
Starting from the corner on your left - measure the distance to any breaks in the wall such as, windows and doors. In addition to measuring from side to side be sure to measure from the bottom of any window trim to the floor and the top of the window trim to the ceiling.

Be sure to record the dimensions of each appliance. Start by measuring the Width, Height, and Depth.

Refrigerator ____W x ____H x ____D Range Hood ____W x ____H x ____D
Stove ____W x ____H x ____D Sink ____W x ____H x ____D
Dishwasher ____W x ____H x ____D Trash Compactor ____W x ____H x ____D
Microwave ____W x ____H x ____D Oven (wall mount) ____W x ____H x ____D

Step 2: Work with our designer:
We will design your kitchen based on your specifications. We will work with you to create your perfect kitchen design.

Step 3: Review your design
View your design
Review your design and we will be able to revise your kitchen design as many times as you need.

If you have any questions please feel free to contact us
